Medical Waste Incinerator for Hospitals & Clinics

MWI Series Medical Waste Incinerator Models & Specifications

All MWI models use gasification pyrolysis with a dual combustion chamber and multi-point air supply. Smoke residence time is ≥ 2 seconds. Running voltage: 220V/50Hz, 380V/50Hz or 60Hz on request.

Model	Capacity	Size L×W×H (mm)	Gasification / secondary chamber (m³)	Chimney	Weight (kg)	Furnace door (mm)	Flue gas treatment	Quote
MWI-20	10–20 kg per batch	1600×1200×1700	0.2 / 0.14	6 m, Ø280	~1,600	380×480	Dry	Get Quote
MWI-30	20–30 kg per batch	1700×1250×2500	0.4 / 0.2	6 m, Ø280	~2,500	480×600	Dry	Get Quote
MWI-50	30–50 kg per batch	1800×1300×3000	0.6 / 0.3	10 m, Ø330	~4,600	600×800	Dry	Get Quote
MWI-50 + wet scrubber	50 kg/h	6000×3000×2500 (floor space)	0.6 / 0.3	12 m, Ø330	~6,000	620×800	Wet (venturi + Pall ring tower + cyclone)	Get Quote

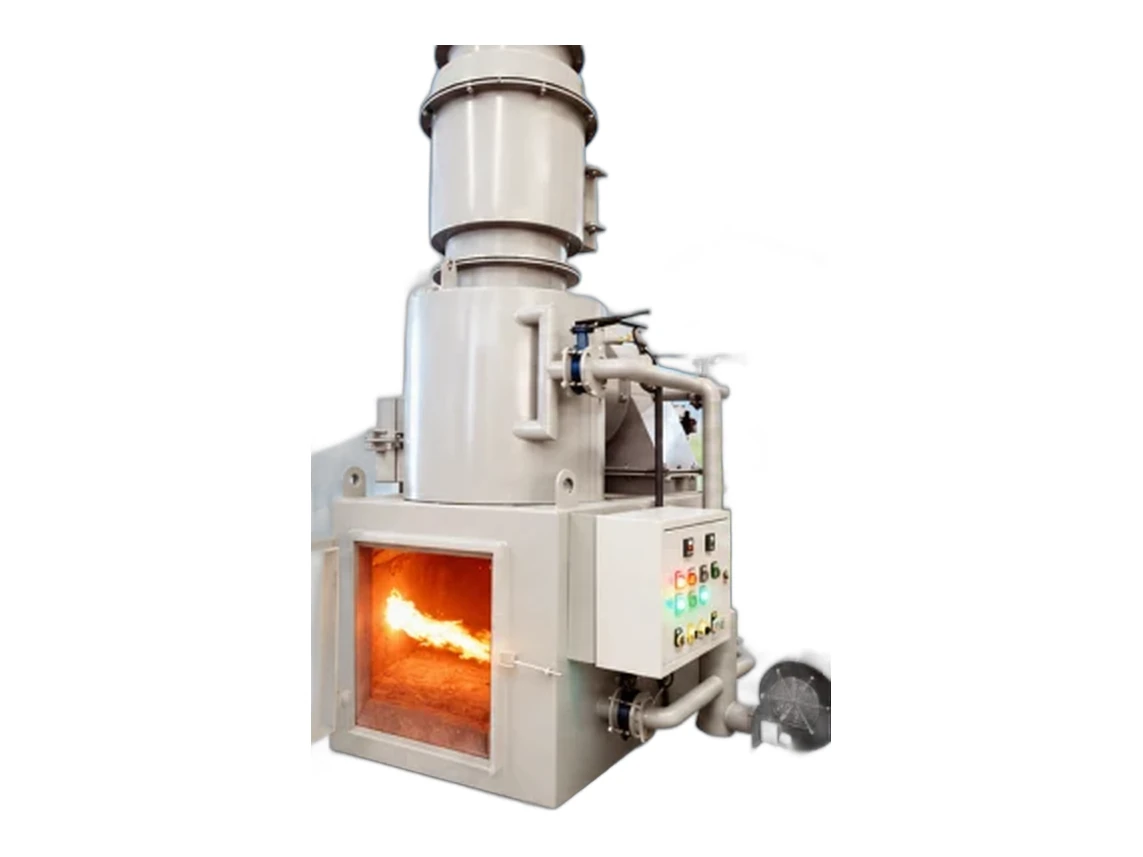

MWI-100	80–100 kg per batch	2000×1400×3300	1.2 / 0.6	10 m, Ø330	~6,500	700×900	Dry	Get Quote
MWI-100 + wet scrubber	100 kg/h	8000×5000×2800 (floor space)	1.2 / 0.6	12 m, Ø400	~8,700	700×900	Wet (venturi + Pall ring tower + cyclone)	Get Quote
MWI-150	100–150 kg/batch	2200×1500×3500	1.5 / 0.7	10 m, Ø360	~7,500	800×1000	Dry	Get Quote
MWI-200	150–200 kg/batch	2300×1600×3500	2.0 / 0.9	10 m, Ø360	~8,500	850×1050	Dry	Get Quote
MWI-300	200–300 kg/batch	2400×1600×3800	2.4 / 1.2	10 m, Ø400	~9,000	900×1100	Dry	Get Quote
MWI-500	400–500 kg/batch	3000×2000×4800	4.0 / 1.5	12 m, Ø460	~14,000	1000×1200	Dry; optional tail gas purification upgrade	Get Quote

Wet Treatment Models (W Series)

W series incinerators pass the flue gas from the second combustion through a venturi spray system, Pall ring packing tower and cyclone dust remover before discharge. Each includes a 3.0 kW induced draft fan and 2.2 kW circulating water pump.

MWI-500 Tail Gas Purification Upgrade

Typical Applications

• Health clinics and township hospitals
• Medium and large hospitals
• Mobile health clinics and vaccination centres
• Small laboratories and pharmaceutical factories
• Covid-19 / PPE waste

Waste Types

• Infectious waste (dressings, swabs, gloves)
• Sharps (in approved containers)
• Pathological waste
• Laboratory waste and cultures
• Expired pharmaceuticals (subject to local rules)

Key Design Features

• Two-chamber design with a high-temperature secondary chamber
• Gas residence time designed to meet your applicable standard
• Temperature monitoring and burner interlocks
• Optional automatic feeding to reduce operator contact
• Flue gas treatment configured to local requirements

Compliance

Medical waste incineration is regulated in most countries. Before ordering, confirm the emission standard, operating permit and ash disposal requirements with your local authority. Share them with us and we will design the system to match.

Information Needed for a Quotation

• Number of beds or daily waste weight
• Waste categories and packaging
• Applicable emission standard
• Fuel and power available on site
• Installation location and space

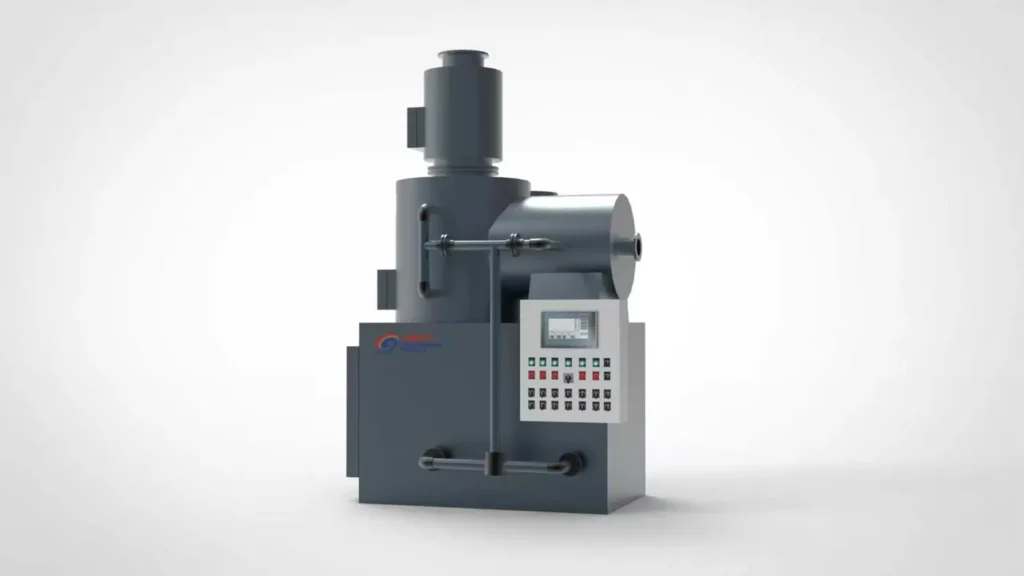

PLC Control and Factory-Built Quality

Our medical waste incinerators can be supplied with a PLC touch-screen control cabinet that manages burner ignition, chamber temperatures and fan operation automatically, making daily operation simpler and more consistent for hospital staff. Every unit is assembled and checked in our own factory before delivery.

FAQ

What temperature does a medical waste incinerator operate at?

Secondary chambers for medical waste are usually designed for around 1,000–1,100°C or higher with a minimum gas residence time, depending on the regulation that applies.

Is a small incinerator suitable for a clinic?

Yes, small batch units are common for clinics and health centers. Sizing depends on daily waste weight and operating hours.
